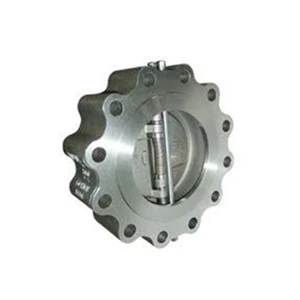

Bronze Dual Plate Check Valve

Bronze Dual Plate Check Valve

The function of the Bronze Wafer Check Valve is to control the one-way flow direction of the valve in the pipeline, so as to prevent the backflow of the medium in the pipeline. The check valve belongs to the automatic valve type, and the opening and closing part is opened or closed by the force of the flowing medium. Check valve is only used for one-way flow of medium pipeline, to prevent media backflow, in order to prevent accidents. It is mainly used in petroleum, chemical, pharmaceutical, fertilizer, power and other pipelines.

Bronze Dual Plate Check Valve
Bronze Dual Plate Check Valve Bronze Dual Plate Check Valve Bronze Dual Plate Check Valve

Technical Specification
Normal Size Range: 2"-60"
Normal Pressure Rating: PN10~PN420, CLASS150~2500
Material: WCB,LCB,WC6,CF8,CF8M,CF3,CF3M
Temperature Range: -29~425Degree C

Standards compliance
Design and Manufacture: API 594, API 6D, JB/T8937
Face to face(end to end): API 594, API 6D, JB/T8937, DIN3202
Flanged connection: ANSI B16.5, DIN2543~48, JB/T9112~24
Butt welded end: ANSI B16.25
Test and inspection: API598, DIN3230, JB/T9092
