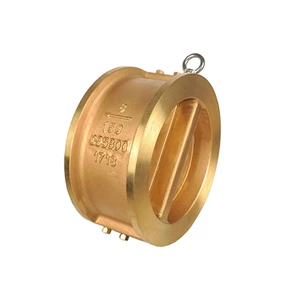

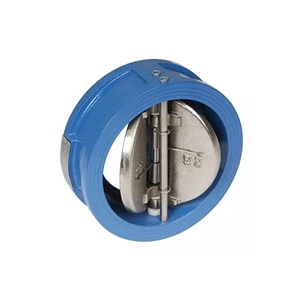

Lug type Dual Plate Check Valve
GAIRUI Cast Steel Lug Wafer Dual Plate Check Valves has retainer and retainerless type design. Dual-disc check valves have the advantage of zero leakage toward outside, cost saving. It can be installed in any line orientation, superior seal performance. Valves are designed in accordance to API 594 and have dual disc or single disc design and pin can be retainerless type.
Technical Specification
Normal Size Range: 2"-60"
Normal Pressure Rating: PN10~PN420, CLASS150~2500
Material: WCB,LCB,WC6,CF8,CF8M,CF3,CF3M
Temperature Range: -29~425Degree C
Standards compliance
Design and Manufacture: API 594, API 6D, JB/T8937
Face to face(end to end): API 594, API 6D, JB/T8937, DIN3202
Flanged connection: ANSI B16.5, DIN2543~48, JB/T9112~24
Butt welded end: ANSI B16.25
Test and inspection: API598, DIN3230, JB/T9092
