Floating Ball Valve

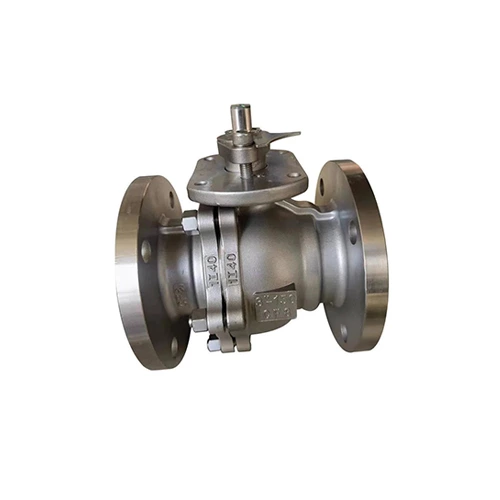

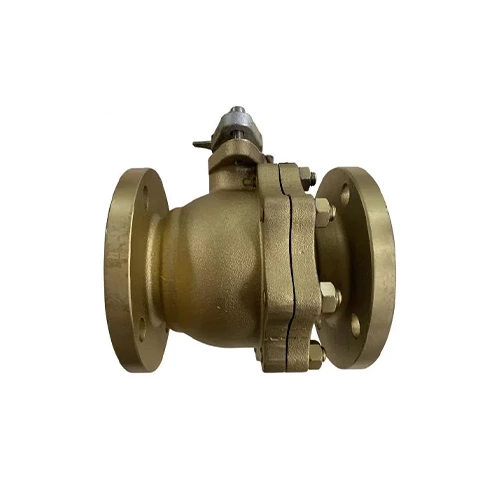

GAIRUI Cast Floating Ball Valves are designed manufactured to provide maximum service life and dependability. All ball valves are full ported and meet the design requirements of American Petroleum Institute Standard API 608&API 6D British standard BS5351 and generally conform to American Society of Mechanical engineers standard ASME B16.34 valves are available in a complete range of bady/bonnet materials and trims.

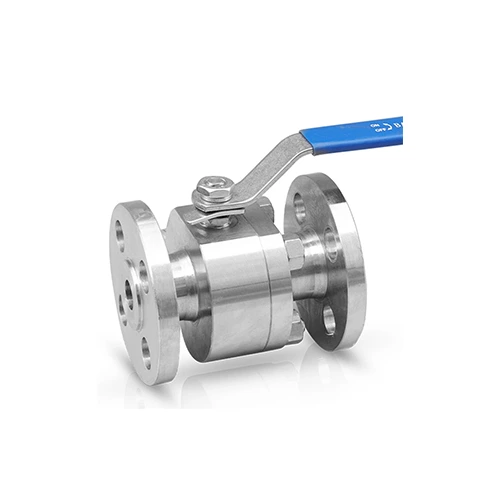

Principle of the forged steel floating ball valve: This kind of ball valve has a floating ball supported by two valve seats. Under the medium pressure effect, a certain displacement can be generated by the ball itself so as to be pressed onto the seat seal ring at the outlet, guaranteeing tightness at the outlet.

Cast Iron Ball Valves are used in commercial, industrial, and process applications requiring a non-corrosive body finish or where a clean cosmetic appearance is desired.

Ball valves are mainly used to cut or connect medium in the pipeline, and can also be used to regulate and control the fluid. The hard sealed V ball valve has a strong shear force between the V core and the metal valve seat of the hardfacing hard alloy. It is especially suitable for the medium containing fiber and small solid material. The multi - ball valve can not only flexibly control the switching of the flow, shunt and flow of the medium, but also close any channel and connect the other two channels. This type of ball valves should be installed horizontally in pipes.
