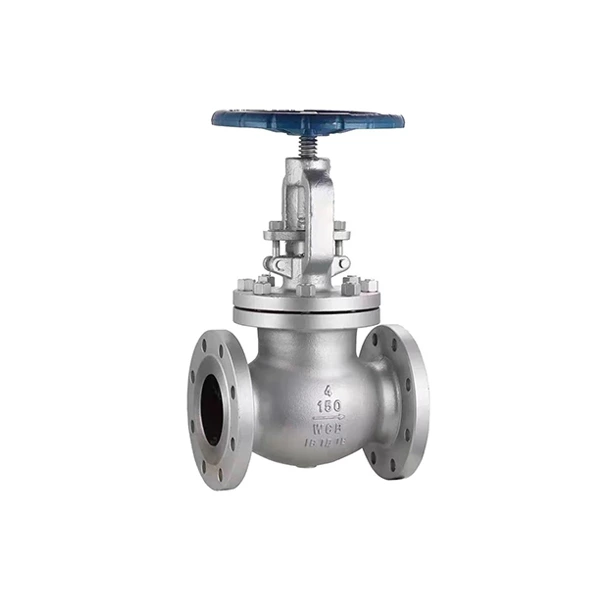

Technical Specification
Normal Size Range: 2"-18"
Normal Pressure Rating: PN10~PN420, CLASS150~2500
Material: WCB,LCB,WC6,CF8,CF8M,CF3,CF3M
Temperature Range: -29~425Degree C
Standards compliance
Design and Manufacture: ANSI B16.34,BS1873
Face tu face(end tu end): ANSI B16.10
Flanged connection: to ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API598
A.Anti-friction ball thrust bearing: Reduces friction between mating parts to ensure smooth operation
B.Grub screw: Secures yoke nut in the bonnet
C.Grease nipple: Supplies lubricant to the mating parts

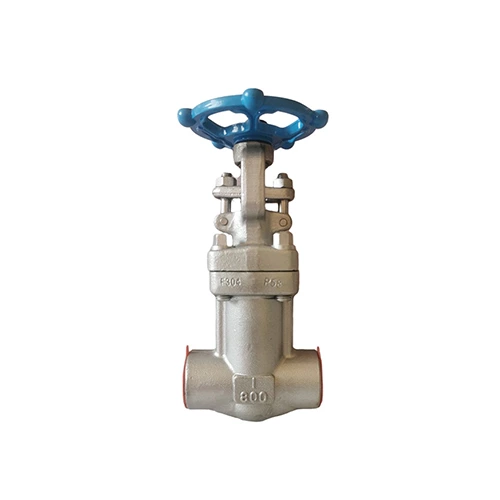

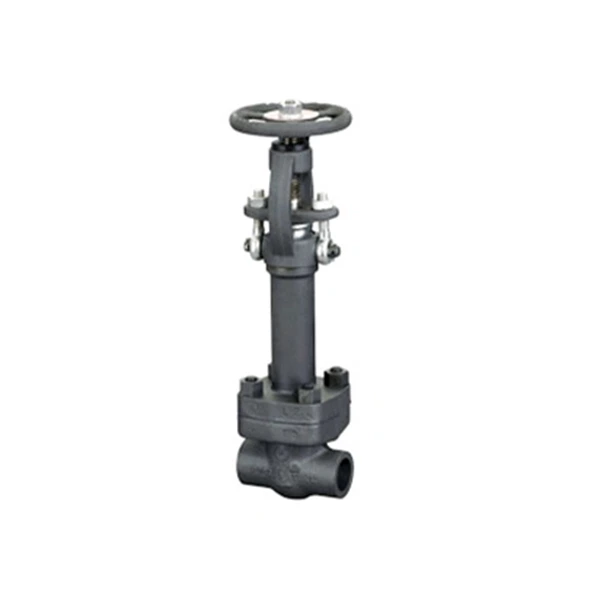

Technical Specification
Normal Size Range: 1/2"- 2"
Normal Pressure Rating: PN10~PN250, CLASS150~1500
Material: A105,LF2,F11,F22,F304,F304L,F316,F316L
Temperature Range: -29~425Degree C
Standards compliance
Design and Manufacture: API602
Face to face(end to end): ASME B16.10
Flanged connection: ASME B16.5
Butt welded end: ASME B16.25
Socket-Welding Ends: ASME B16.11
Screwed Ends: ASME B1.20.1
Test and inspection: API598

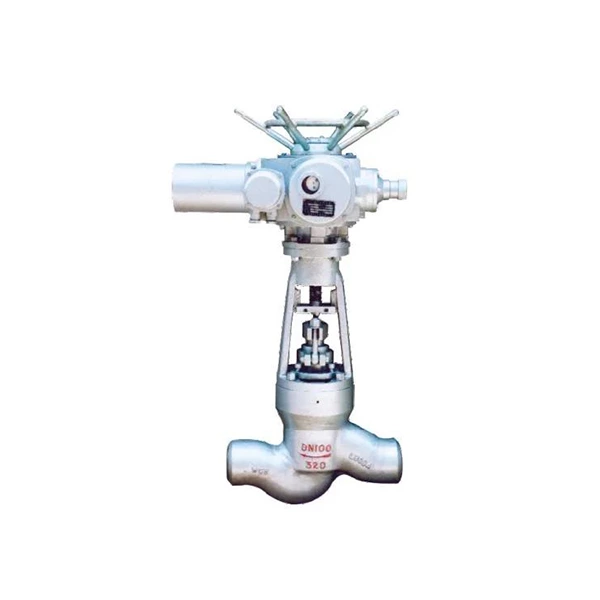

Technical Specification
Normal Size Range: 2"-12"
Normal Pressure Rating: PN100~PN420, CLASS600~2500
Material: WCB,LCB,WC6,CF8,CF8M,CF3,CF3M
Temperature Range: -29~425Degree C
Standards compliance
Design and Manufacture: ANSI B16.34,BS1873
Face to face(end to end): ANSI B16.10
Flanged connection: ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API598.
A.Back up ring: Absorbs thrust applied by internal pressure
B.Thrust ring: Protects the soft metallic gasket from deformation
C.Gasket: Unique angular design provides superior sealing

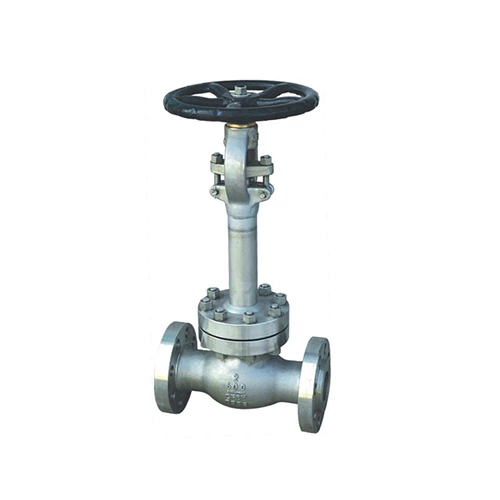

Standards compliance
Design & Manufactured: BS 1873, ASME B16.34 or DIN3202, ASME B16.34
Face to Face dimensions: ASME B16.10 , ASME B16.5
Butt-weld Ends to ASME B16.25
Threaded Ends to ASME B1.20.1
Socket-weld Ends to ASME B16.11, MSS SP-25
Inspect & Tested to API 598
Technical Specification
Size Ranges from 1/2” thru 24”
Pressure Ratings from Class 150 to Class 2500, PN16 to PN420
Structures in Bolted or Pressure Sealed Union Cover, Bonnet or Stem Extension
Ends Connections in Flanged, Threaded, Welded Ends and Grooved
Body Materials available in Cast or Forged Low Carbon Steel, Stainless Steel, Duplex & Super Duplex Steel, Special Materials upon request
Trim Materials available in LF2, SS304, SS304L, SS316, SS316L and other specials
Actuations can be equipped with Handwheel, Gear Device, Electric / Pneumatic or Hydraulic Actuators
Optional Bypass system, Live Loading Packing & O-ring Seal available upon request.
Technical Specification
Normal Size Range: 2"-12"
Normal Pressure Rating: PN100~PN420, CLASS600~2500
Material: WCB,LCB,WC6,CF8,CF8M,CF3,CF3M
Temperature Range: -29~425Degree C
Standards compliance
Design and Manufacture: ANSI B16.34,BS1873
Face to face(end to end): ANSI B16.10
Flanged connection: ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API598.
A.Back up ring: Absorbs thrust applied by internal pressure
B.Thrust ring: Protects the soft metallic gasket from deformation
C.Gasket: Unique angular design provides superior sealing

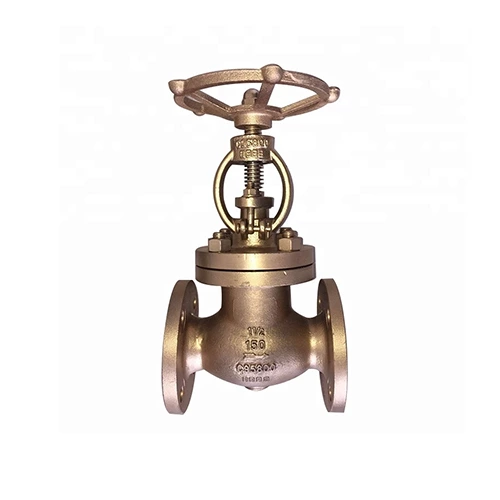

Technical Specification
Normal Size Range: 2"-18"
Normal Pressure Rating: CLASS150
Material: C95800
Temperature Range: -29~425Degree C
Standards compliance
Design and Manufacture: ANSI B16.34,BS1873
Face tu face(end tu end): ANSI B16.10
Flanged connection: to ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API598
A.Anti-friction ball thrust bearing: Reduces friction between mating parts to ensure smooth operation
B.Grub screw: Secures yoke nut in the bonnet
C.Grease nipple: Supplies lubricant to the mating parts

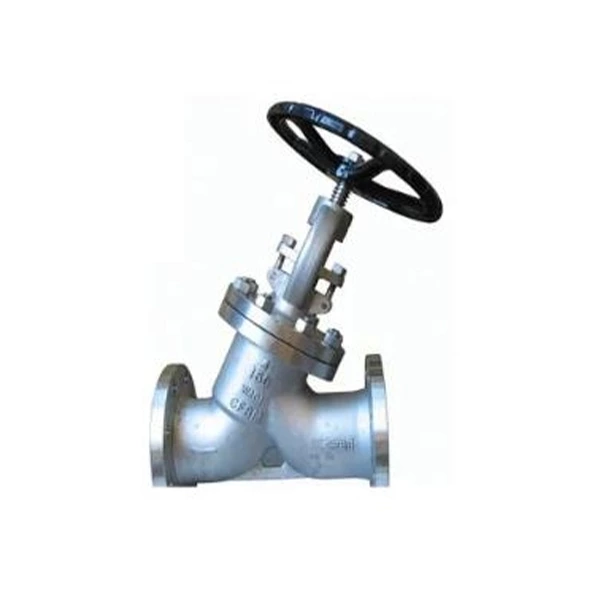

Standards compliance
Design & Manufactured to BS 1873, ASME B16.34 or DIN3202 ,ASME B16.34
Face to Face dimensions to ASME B16.10
Flanged Ends to ASME B16.5
Butt-weld Ends to ASME B16.25
Inspect & Tested to API 598
Size Ranges from 1 1/2” thru 24”
Structured in Bolted Cover, Outside Screw and York
Pressure Ratings from Class 150 to Class 1500, PN16 to PN260
Ends Connections in Flanged R.F or RTJ, Butt-welded and Grooved
Body Materials available in Cast Carbon Steel, Cast Low Carbon Steel, Cast Alloy Steel, Cast Stainless Steel, Cast Duplex & Super Duplex Steel, Special Materials in Cast Monel, Alu. Bronze etc.
Trim Materials available in 13%Cr, F11, F22, SS304, SS304L, SS316, SS316L and other specials
Actuations can be equipped with Handwheel, Gear Devices, Electric / Pneumatic or Hydraulic Actuators
Optional Globe Check, Bypass system, Live Loading Packing& O-ring Seal

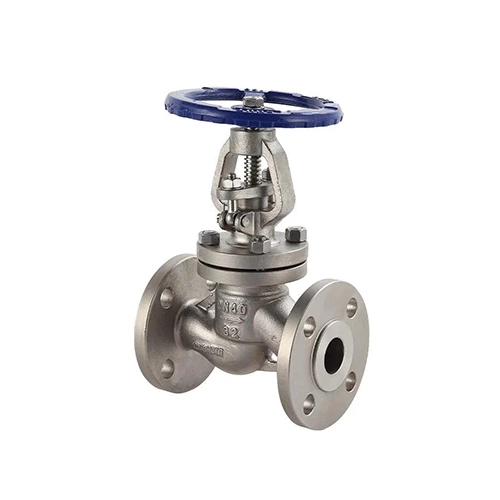

Technical Specification
Normal Size Range: DN15-DN400
Normal Pressure Rating: PN10~PN40
Material: WCB,LCB,WC6,CF8,CF8M,CF3,CF3M
Temperature Range: -29~425Degree C
Standards compliance
Design and Manufacture: DIN3356
Inspection and Test: ISO 5208,EN12266
Flanged ends dimension: DIN2543 ,DIN2544,DIN2545
Butt-welded ends dimension: EN12627
Face to face and end to end: DIN3202,EN558-1,ISO5752
Pressure-temperature ratings: DIN2401
Test & Inspection: DIN3230
Specification:
Model: J41H-16
Design: DIN3356/EN13789
Face-to-face: DIN3202-F1/EN558
Flange: EN1092 PN16
Inspection: EN12266-1
Pressure rating: PN16
Size range(mm): DN15~DN300
Body/Bonnet: Cast iron/Ductile iron GG25/GGG40/GGG50/GJL250/JL1040
Stem: Stainless steel X20Cr13
Seal ring: Stainless steel X20Cr13/304
Dimension: Contact us for specific drawing.
Technical Specification
Normal Size Range: 1/2"-2"
Normal Pressure Rating: 200PSI/PN16
Material: WCB, CF8,CF8M,CF3,CF3M
Temperature Range: -29~425Degree C
Threaded: BSPT, BSP(BS21), NPT(B1.20.1), DIN2999/259,ISO288-1,ISO7/1
Type: Inside screwed bonnet, solid wedge, integral seat, full bore, non-rising stem and hand wheel
Investment Casting body and cap.
Inspection testing:API598
Investment casting body / bonnet
Inside screw and screwed bonnet, wedge disc, integral seat, non-rising stem and handwheel.

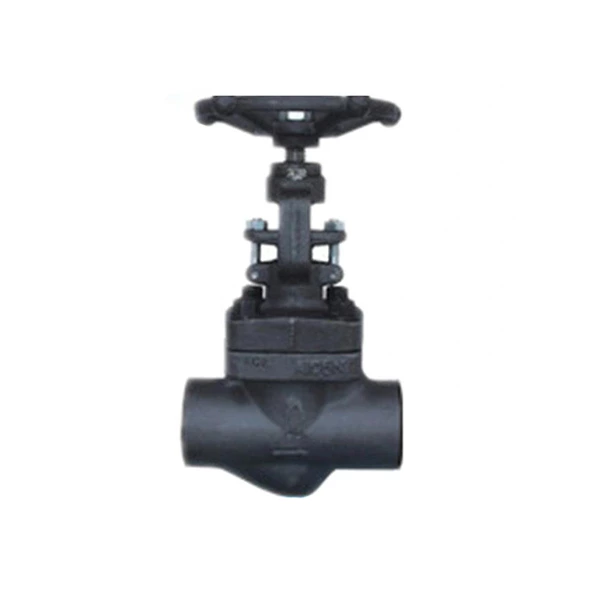

Technical Specification
Normal Size Range: 1/2"- 4"
Normal Pressure Rating: PN10~PN420, CLASS150~2500
Material: A105,LF2,F11,F22,F304,F304L,F316,F316L
Temperature Range: -29~425Degree C
Standards compliance
Design and Manufacture: API602
Face to face(end to end): ASME B16.10
Flanged connection: ASME B16.5
Butt welded end: ASME B16.25
Socket-Welding Ends: ASME B16.11
Screwed Ends: ASME B1.20.1
Test and inspection: API598
Technical Specification
Normal Size Range: 1/2"- 4"
Normal Pressure Rating: PN10~PN420, CLASS150~2500
Material: A105,LF2,F11,F22,F304,F304L,F316,F316L
Temperature Range: -29~425Degree C
Standards compliance
Design and Manufacture: API602
Face to face(end to end): ASME B16.10
Flanged connection: ASME B16.5
Butt welded end: ASME B16.25
Socket-Welding Ends: ASME B16.11
Screwed Ends: ASME B1.20.1
Test and inspection: API598

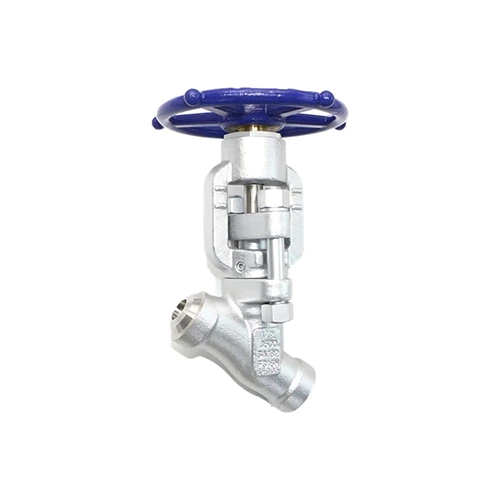

Technical Specification
Normal Size Range: 1/2"- 2"
Normal Pressure Rating: PN10~PN250, CLASS150~1500
Material: A105,LF2,F11,F22,F304,F304L,F316,F316L
Temperature Range: -29~425Degree C
Standards compliance
Design and Manufacture: API602
Face to face(end to end): ASME B16.10
Flanged connection: ASME B16.5
Butt welded end: ASME B16.25
Socket-Welding Ends: ASME B16.11
Screwed Ends: ASME B1.20.1
Test and inspection: API598
Technical Specification
Normal Size Range: 1/2"- 2"
Normal Pressure Rating: PN100~PN420, CLASS600~2500
Material: A105,LF2,F11,F22,F304,F304L,F316,F316L
Temperature Range: -29°C~425°C
Standards compliance
Design and Manufacture: API602
Face to face(end to end): ASME B16.10
Flanged connection: ASME B16.5
Butt welded end: ASME B16.25
Socket-Welding Ends: ASME B16.11
Screwed Ends: ASME B1.20.1
Test and inspection: API598
Technical Specification
Normal Size Range: 1/2"- 2"
Normal Pressure Rating: PN10~PN420, CLASS150~2500
Material: A105,LF2,F11,F22,F304,F304L,F316,F316L
Temperature Range: -29~550 Degree C
Standards compliance
Design and Manufacture: API602
Face to face(end to end): ASME B16.10
Flanged connection: ASME B16.5
Butt welded end: ASME B16.25
Socket-Welding Ends: ASME B16.11
Screwed Ends: ASME B1.20.1
Test and inspection: API598

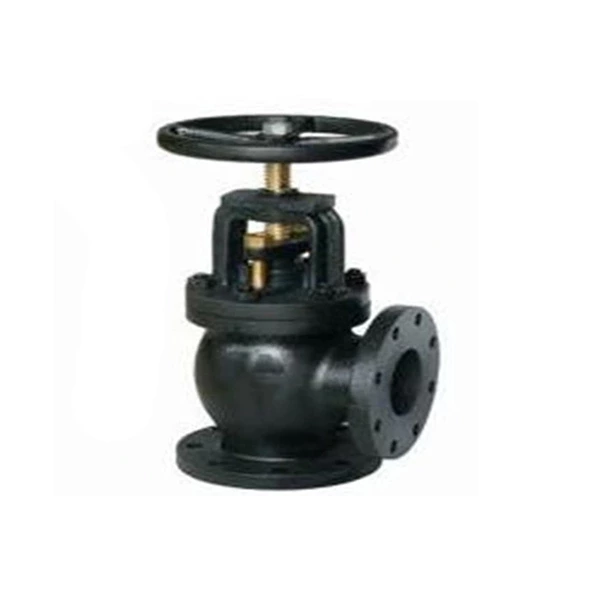

Technical specification
Design standard: DIN 3356
Face to face dimension: DIN 3202
Flanged ends: DIN 2543-2545
Test & inspection: DIN 3230
Performance specification

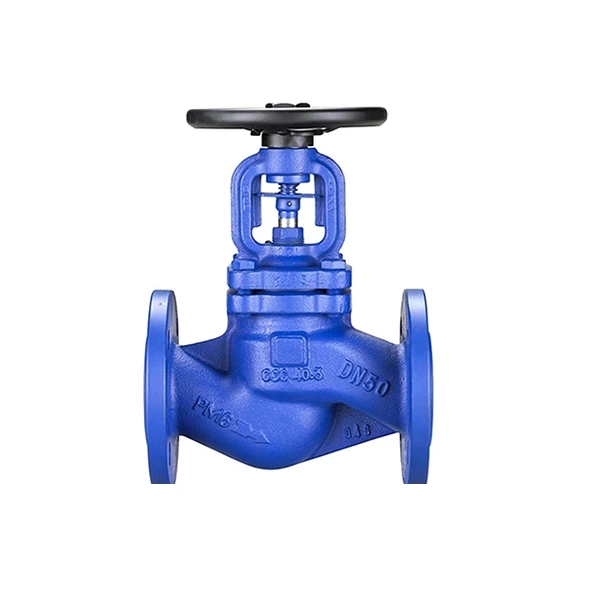

Advantage
1.Bellow seal element. The key part of bellow sealed globe valves is mental bellow. It is the connection between cover and stem with automatic roll welding. The mental bellow can keep the stem part no leakage.
2.Benefit from the con and streamline shape design, the disc has a reliable seal and longer service life.
3.Double seal design(bellows+packing). Bellow and packing can protect against leakage and provide a excellent seal.
4.Grease nipple. It can direct lubricate the stem, nut and sleeve.
5.Ergonomic hand wheel. It provide longer service life and easier operation.
Technical Specification
Normal Size Range: 1/2"- 2"
Normal Pressure Rating: PN10~PN100, CLASS150~600
Material: A105,LF2,F11,F22,F304,F304L,F316,F316L
Temperature Range: -29~425Degree C
Standards compliance
Design and Manufacture: API602
Face to face(end to end): ASME B16.10
Flanged connection: ASME B16.5
Butt welded end: ASME B16.25
Socket-Welding Ends: ASME B16.11
Screwed Ends: ASME B1.20.1
Test and inspection: API598

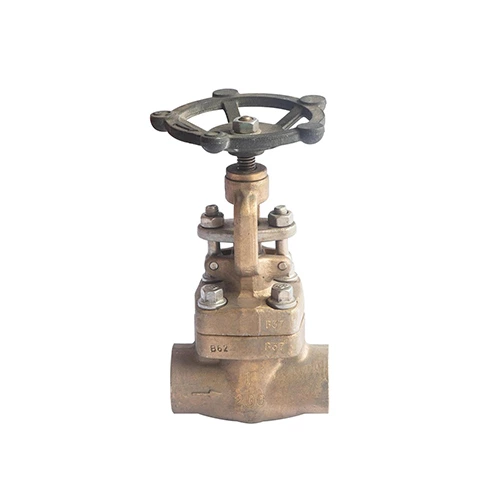

Technical Specification
Size ranges: 1/2” through 2”
Pressure ratings: ANSI 150LB ~ 800LB
Standards compliance: API 602, ASME B16.34 or equivalents
Materials: B61, B62 and etc
Ends connections: Flanged(FF, RF), Screwed, Welded Ends to international standards
OS&Y, Outside Stem and Yoke
Metal-sealed-Bronze
Optional Locking Device or Stem Extension
Optional Direct Mounting to ISO 5211
Reduce Port

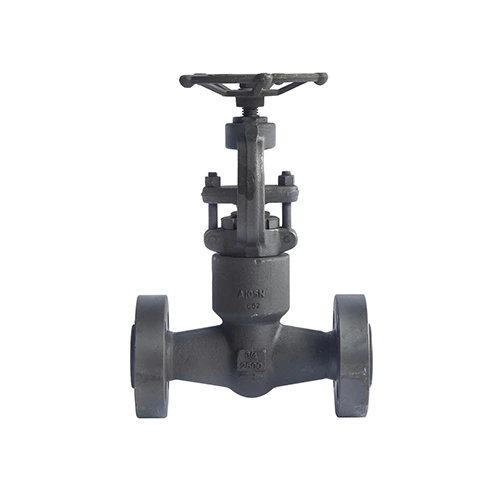

Technical Specification
Size Ranges: 1/2” through 2”
Pressure Ratings: ANSI #150 LB to 2500 LB, 4500LB
Standards compliance: BS1873, ASME B16.34 or equivalents
Materials: A105, F11, F22, F5, F304, F316, F304L, F316L, F51 and etc.
Ends Connections: Flanged(FF, RF, RTJ) to international standards
OS&Y, Outside Stem and Yoke
Metal-sealed(API Trim # 1, #5, #8, #10 and etc.)
Optional Locking Device or Stem Extension
Optional Direct Mounting to ISO 5211
Reduce Port and Full bore
