Single Disc Check Valve

PN:
16~250
DN:
15~1400
Material:
WCB, A105, LCC, LF2, 20ГЛ, 20ГМЛ, SS304, SS321, SS316, SS316Ti
DRIVE:
Manual, Electric, Pneumatic
Connection:
Flange, Welded, Threaded
Medium:
Water, steam, oil, chemical
Enquiry

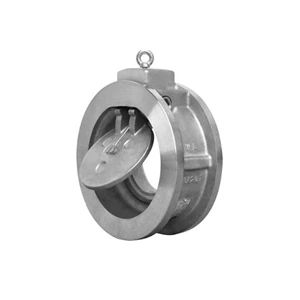

Single Disc Check Valve
Single Disc Check Valve

Technical Specification
Normal Size Range: 2"-24"
Normal Pressure Rating: CLASS150~300
Material: A105,LF2,F304,F304L,F316,F316L
Temperature Range: -29~425Degree C

Standards compliance
Design and Manufacture: API 594, API 6D, JB/T8937
Face to face(end to end): API 594, API 6D, JB/T8937, DIN3202
Flanged connection: ANSI B16.5, DIN2543~48, JB/T9112~24
Butt welded end: ANSI B16.25
Test and inspection: API598, DIN3230, JB/T9092
