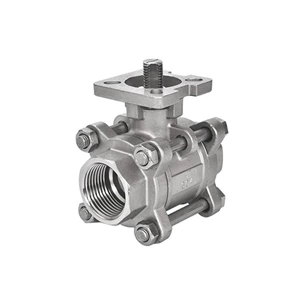

Three Way Threaded Ball Valve

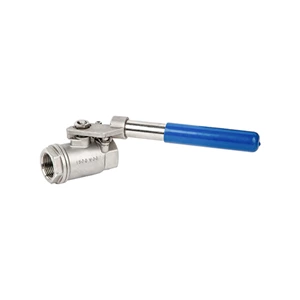

Female threaded ball valves are suitable for using on pipelines of medium or low pressure to turn off or swith on pipeline medium. Operation manners are in general of manual, and pneumatic or electric actuators are available.Based on design structures, the valves get divided into three pieces, two pieces, and one piece types. Female Threaded ball valve & butt welded ball valve could be divided into one piece, two piece and three piece body. Advanced casting technology is used for body with reasonable structure and beautiful appearance. Elastic seat material is adopted to ensure reliable sealing together with easy operation.
Technical Specification
Product name: Stainless Steel Floating Ball Valve
Size: 1/2" -2" (DN15-DN50)
Material: SS201, SS304, SS316(CF8, CF8M)
Pressure: 1000psi, PN16
Suitable medium: water, oil, air and some corrosive liquid etc(WOG)
Temperature Range: -20-250 degree C
Connection: F/F threaded
Type of thread: NPT, BSPT, BSP, PT, DIN2999 ETC
Sealing: PTFE, RPTFE, PPL ETC
Certification: CE, ISO
Gurantee Period: 12 monthes
Type of Port: full port
Casting: Investment
Capacity to produce: 100, 000.00 PCS/week
Terms of payment: 30% TT deposit, the balance is paid before shipping the goods
Delivery time: 30-45 days after received the deposit
Package detail: inner CTN, ourside ply-wooden case
Locking: With or without
Brand: Our brand is GAIRUI, we also can print your logo if you can give us the authorization
